Genie TML4000 Trailer Mounted Light Tower with 4 HID Metal Halide Lamps, 1000 Watts, 170" L x 54" W x 70" H Review
Genie TML4000 Trailer Mounted Light Tower with 4 HID Metal Halide Lamps, 1000 Watts, 170" L x 54" W x 70" H Feature
- 30' (9.14 m) light height and 4,000 W of light for illuminating up to 7 1/2 acres
- 359 degree non-continuous tower rotation for precision light positioning
- 6 kW generator for periods of extended use
- Four HID metal halide lamps for high intensity light
- Patented outrigger system for stability on uneven surfaces

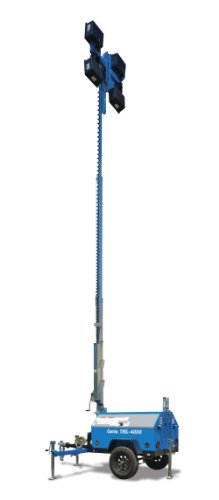

The Genie TML 4000 is a 6 kW generator powered trailer-mounted halide light tower with four lights, a 30' lift height (4' 6"/1.37 m stowed width), and 359-degree non-continuous tower rotation for precision light positioning. The TML 4000 has (4) 1,000 watt, adjustable metal halide lights (each with an individual circuit breaker), for providing high intensity light and can be aimed vertically from ground level without the use of tools.
Ideal for Extended Use
The tower operates on a brushless 60 Hz 6.0 kW generator and a Kubota diesel 13.6 hp engine with a 30 gallon (114 L) tank which allows up to 100 hours of use in between fueling.
Simple to Position and Stabilize
It has a 30-degree leveling capability, a galvanized mast with plastic slide pads, patented outrigger system for stability on uneven surfaces, dual tower rotation handles, and a handle-activated locking system for quickly positioning the tower.
Convenient Receptacles and Protected Cable Routing
The TML 4000 has a 120 V GFCI duplex receptacle, a 240 V twistlock receptacle, and the cables are located within a protective routing system.
Easy to Transport
It has a single point lifting eye and fork lift pockets for ease of transport. The light tower uses P185/75B13 tires and has a 60 mph towing speed rating, weighs 1,810 lbs (821 kg) with no fuel, and has an axle rating of 2,000 lbs (907 kg).
About Light Towers
Light tower units are used for illuminating work sites to maximize nighttime productivity and consist of a tower with a durable base and mast, with a set of lights at the top of the mast that can be rotated and positioned as necessary. Light towers are used for many different applications, including construction, mining, and sporting events. For industrial use only.
About Genie Industries
Genie Industries, a subsidiary of Terex Corporation, was founded in 1966 with the introduction of the Genie Hoist, a portable pneumatic material lift. Genie is headquartered in Redmond, WA, and manufactures a variety of lifts, booms, light towers, and telehandlers.
