Terex RL4000 Light Tower with 4 Metal Halide Lamps, DOT Tail Lights Included, 1000 Watts, 30' Extended Height Review
Terex RL4000 Light Tower with 4 Metal Halide Lamps, DOT Tail Lights Included, 1000 Watts, 30' Extended Height Feature
- 30' (9.14 m) light height and 4,000 W of light for illuminating up to 7 1/2 acres
- 359-degree non-continuous tower rotation for precision light positioning
- Dual self-braking winch design for quick tower extension
- 6 kW generator for periods of extended use
- Uses metal halide bulbs for high intensity light

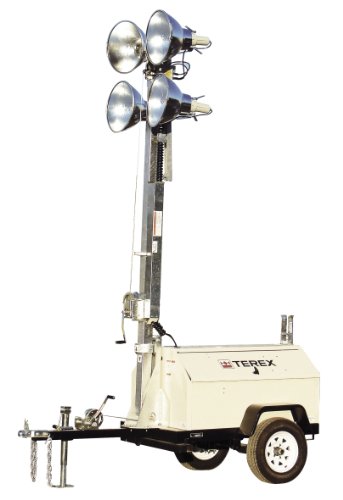

The Terex RL 4000 6 kW generator-powered metal halide light tower with four lights, a 30' (9.14 m) lift height, and 359-degree non-continuous tower rotation for precision light positioning. The RL4000 has (4) 1,000 watt, adjustable metal halide lamps for providing high intensity light with bulbs that can be individually adjusted, and have an average lifespan of 5,000 to 10,000 hours.
Powerful, Quiet Operation
With 71 dBA sound levels at 23' (7 m), the tower's 6.0 kW water-cooled diesel generator is quiet and vibration-free when in use. The brushless, self-regulated generator is powered by a 13.6 hp Kubota diesel engine with a 30 gallon (114 L) tank that can provide approximately 60 hours of continuous use. It is capable of operating four 1,000 W metal halide lamps at an altitude of up to 5,000 feet above sea level. The operational temperature range is from -40 to 104 F, and it is protected with high water temperature and low oil pressure shutdowns.
Simple to Raise and Extend
A dual hand-operated safety winch system is used to pivot and telescope the tower. The tower has a self-braking, erecting and extending winch mounted inside the cabinet, and the control panel is located inside the panel for protection. The RL 4000 has one GFI duplex 20 A / 120 V and one T/L 30 A / 240 V receptacle, and quick disconnect lights and ballasts for fast service and repair. The mast and outriggers are fully galvanized for protection from the elements.
Designed for Ease of Transport
The tower support is bolted to the front of a sheet steel trailer frame that has stabilizing outriggers that swivel up for travel and a tongue that extends 51" (130 cm) and is removable for storage and shipping. The standard towing hitch is a 2" (50.8 mm) ball coupler with an 18" (457 mm) towing height. The trailer has a single point lifting eye, fork lift pockets for lifting to hard to reach job sites, and is set on (2) 13" wheels. The generator set is mounted to the frame on rubber vibration mounts for traveling over rough terrain. The RL 4000 weighs 1,725 lbs (783 kg) with no fuel and has an axle rating of 2,000 lbs (907 kg). The RL 4000 comes equipped with DOT lights.
About Light Towers
Light tower units are used for illuminating event or work sites to maximize nighttime productivity and consist of a tower with a durable base and mast with a set of lights at the top of the mast that can be rotated and positioned as necessary. Light towers are used for many different applications, including construction, mining, and sporting events. For industrial use only.
About Genie Industries
The Terex Corporation is a global manufacturer of a wide variety of heavy equipment, ranging from telescopic cranes, boom trucks, aerial work platforms, container stackers, to mining trucks, among many others. The corporation is building a franchise under the Terex brand name and has acquired numerous material handling, mining, and road building companies, and continues to manufacture products under their historic brand names.
